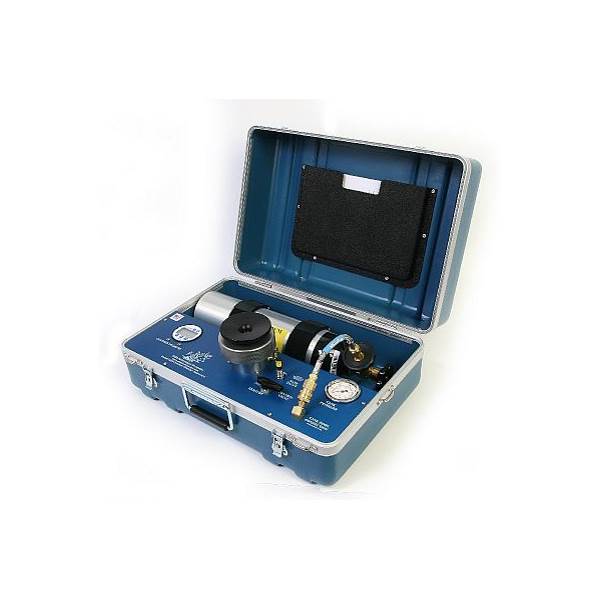

Model 1515D Pressure Chamber Instrument

Model 1515D Pressure Chamber Instrument is a new release with changes that most users will appreciate. It is a 100 bar digital instrument fully enclosed in a sealed case with an easily removable tank. It is similar to our Model 615 except higher pressure and digital readout. The Control Valve and internal piping have been upgraded to now allow direct connection to Nitrogen Cylinders with 207 Bar/3000 PSI pressure. The instrument is fitted with a 100 Bar Digital Gauge that offers features such as backlighting and multiple pressure scales such as (Bar, Mpa and PSI).

Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is 1/4 inch in diameter down to a completely closed position. If you need other sealing options such as bladed grass or other semi-round sizes check our other options.

This is an excellent choice for research due to the large range of operating pressure. It is good for work on high stress level plants, pressure volume curves but can also be used for routine water measurements for crop plants.

The instrument has a bail-spring handle for carrying and comes complete with a shoulder strap to lighten the load in the field. It has 5 tie-down rings for mounting to ATV or other transportation. The instrument comes complete with light weight aluminum nitrogen cylinder (20 cubic foot) that is secured with 2 inch heavy duty velcro straps and can be quickly replaced with a full cylinder.

Technical Specifications:

  • Maximum Operating Pressure: 100 bar
  • Chamber Construction: Solid Stock Stainless Steel
  • Read-out Digital Gauge (Reads in Bar, Mpa or PSI)
  • Size (L x W x H) 22 × 15 × 10 inches
    56 × 38 × 26 centimeters
  • Weight 35 Lbs / 16 Kg
  • Gauge 2.5” Diameter Gauge
    1/2 of 1% accuracy
    100 bar (10 Mpa) range
  • Aluminum Tank 207 Bar/ 3000 PSI Maximum Pressure 20 Cubic Foot
