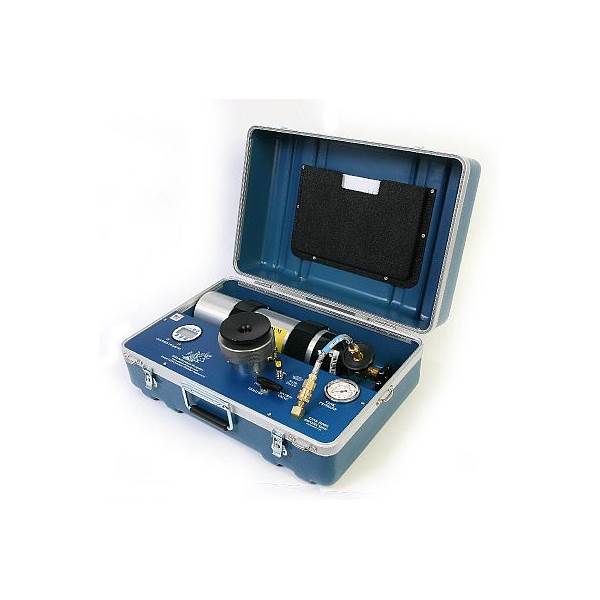

Model 615D Pressure Chamber Instrument

Model 615D Pressure Chamber Instrument is our digital format of the Model 615. The Control Valve and internal piping have been upgraded to now allow direct connection to Nitrogen Cylinders with 207 Bar/3000 PSI pressure. The instrument is fitted with a 40 Bar Digital Gauge that offers features such as backlighting and multiple pressure scales such as (Bar, Mpa and PSI).

Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is 1/4 inch in diameter down to a completely closed position. If you need other sealing options such as bladed grass or other semi-round sizes check our other options.

This is an excellent choice for research due to the large range of operating pressure. It is good for work on high stress level plants, pressure volume curves but can also be used for routine water measurements for crop plants.

Technical Specifications

Maximum Operating Pressure 40 bar
Chamber Construction Anodized Aluminum Chamber
Chamber Size 2.5 Inch Dia x 5.0 Inch Depth
Read-out Digital Gauge (Reads in Bar, Mpa or PSI)
Size (L x W x H) 22 × 15 × 10 inches
  56 × 38 × 26 centimeters
Weight 29 Lbs / 13 Kg
Gauge 2.5” Diameter Gauge
  1/2 of 1% accuracy
  40 bar (4 Mpa) range
Aluminum Tank 207 Bar/3000 PSI Maximum Pressure 20 Cubic Foot
