Help make decisions regarding areas of the field that require tillage, changes to crop rotation, and planting of cover crops
- Includes 1/2 in and 3/4 in cone tip
- Takes compaction readings to a depth of 18 in (45 cm)
- Exclusive ultrasonic depth sensor captures readings in 1 in (2.5 cm) increments
- Penetration resistance measured by internal load cell
- Compaction data is displayed in PSI or kPa (1 psi = 6.9 kPa)
- Connects to any GPS receiver with serial output option*
- Equipped with internal data logger and RS-232 port
- Records 772 measurements (579 with added GPS/DGPS option)
- Configure and download meter with FieldScout® software and USB-to-3.5mm-Stereo-Plug Adapther (Item 3661U.(included)**

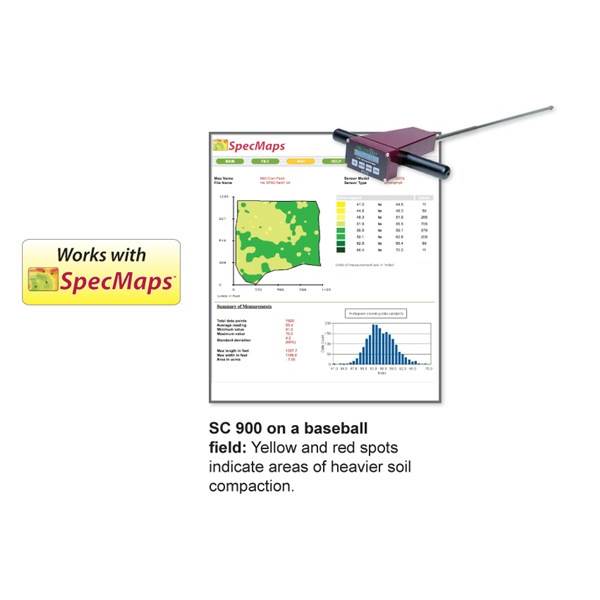

- Compatible with SpecMaps online web-mapping application

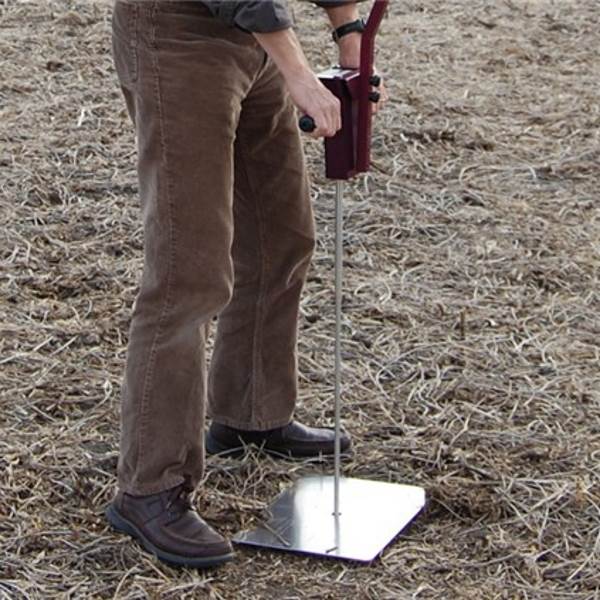

- Includes carrying case and depth target
Technical Specifications
- Measurement Units: Cone Index (PSI or kPa)
- Resolution: 1 in (2.5 cm), 5 PSI (35 kPa)
- Accuracy: ± 0.5 in (1.25 cm) Depth, ±15 PSI (103 kPa) Pressure
- Range: 0 to18 in (0 to 45 cm), 0 to 1,000 PSI (0 to 7,000 kPa)
- Battery/Life: 4 AAA alkaline batteries; approximately 12-month life
- Data Logger Capacity: 772 profiles without GPS; 579 profiles with GPS
