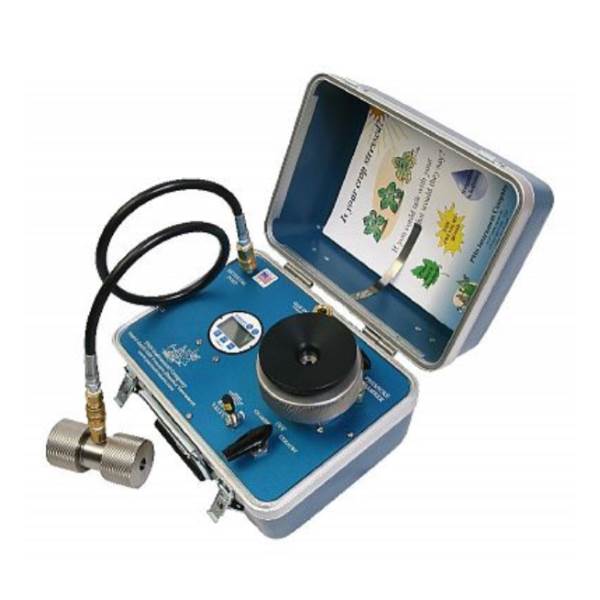

Model 1505D-EXP Pressure Chamber Instrument

The Model 1505D-EXP Pressure Chamber Instrument is PMS official release of the “Model 1000/Cavitation Combo unit”. This instrument comes with all the normal features of PMS digital pressure chamber and in addition comes with a Cavitation Chamber. The instrument can be used for either Cavitation work or Pressure Chamber work.

PMS have upgraded the Control Valve and internal piping to now allow direct connection to Nitrogen Cylinders with 207 Bar/3000 PSIpressure. The instrument is fitted with a 100 Bar Digital Gauge that offers features such as backlighting and multiple pressure scales such as (Bar, Mpa and PSI).Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is 1/4 inch in diameter down to a completely closed position. This is a specialty instrument that will benefit the user who is doing both Cavitation work and Pressure Chamber work.The instrument requires a nitrogen source. You can use it in a lab or green house with a large cylinder or buy our light weight Portable Tank to allow for field work.


  •  Maximum Operating Pressure
    100 bar
  •  Chamber Construction
    Solid Stock Stainless Steel
  •  Read Out
    Digital Gauge (Reads in Bar, Mpa or PSI)
  •  Size (L x W x H)
    13 × 11 × 10 inches
    33 × 28 × 24 centimeters
  •  Weight
    25 Lbs/11 Kg
  •  Gauge
    2.5” Diameter Gauge
    ½ or 1% accuracy
    100 bar (10 Mpa) range

Instrument comes complete with the following accessories for the Pressure Chamber: 1/4 Inch Compression Gland Sealing System, 5 Extra 1/4 Compression Gland Gaskets, 6 foot Filling Hose, 1 – Solid Lab Stopper for instrument testing, O-Ring lubricant and Lithium Grease, 11/32 inch wrench and 3/32 inch Allen Key for Control Valve Adjustment and a color Operating Instructions Manual In addition the following items are for the Cavitation Chamber: 3 foot hose connecting to Cavitation Chamber, Cavitation Chamber, 2 metal inserts of following sizes (5/8”, 3/8”, 3/16”), 5 rubber gaskets of each size (blank, 1/16”, 1/8”, 3/16”).
